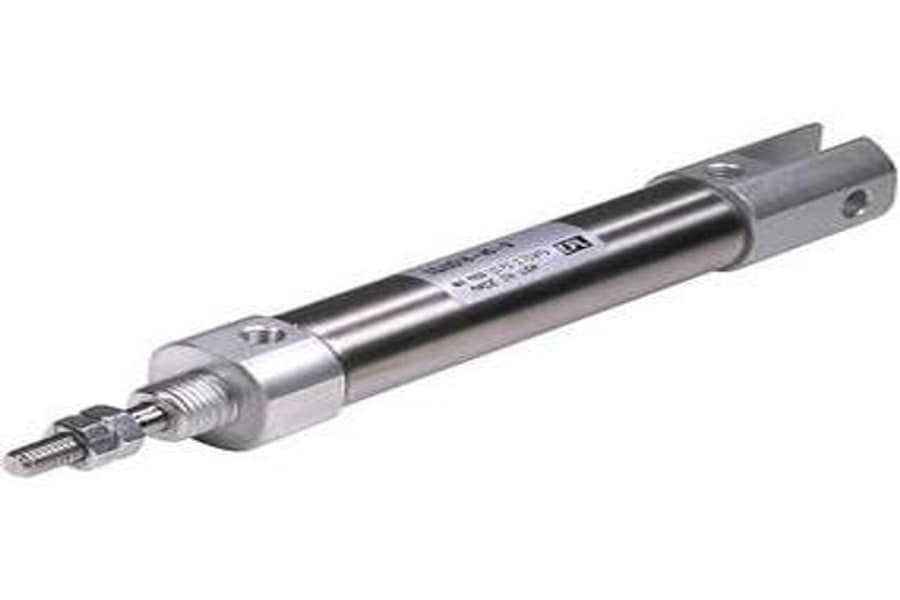

Air Cylinder CDJ2M16-200Z-M9B-B
- Product code: CDJ2M16-200Z-M9B-B
- Trademark: SMC
- Origin: China
- Status:
Contact

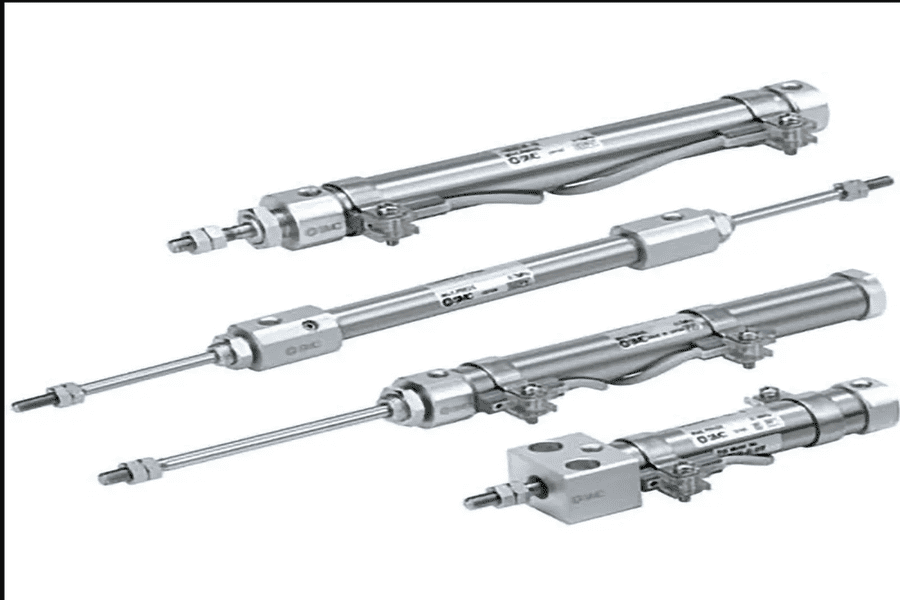

An air cylinder manufactured by SMC.
[Features]
· Double foot, head flange and double-side bossed have been added to the mounting types.
· Improved freedom in mounting.
· Head cover with boss is also available.
· Easy fine adjustment of auto switch position.
· Transparent switch bracket improves visibility of indicator LED.
· A head cover port location that is perpendicular to the axis has been added to ø6.
· Part numbers are set for products with rod-end brackets and pivot brackets.
| Cylinder (Tube) Inner Diameter(φ) | 16 | Stroke(mm) | 200 |
|---|---|---|---|
| Cylinder Operation Method | [Double Acting] Double Acting | Rod Operation Method | Single Rods |
| Main Body Shape | Standard | Additional Function | Standard |
| Environment, Applications | Standard | Operating Temperature(°C) | -10～70 |
| End Locking | No | Valves | No |
| Operating Pressure(MPa) | 0.06～1 | Cushion | Rubber cushion |
| Auto Switches | M9B | Lead Wire Length(m) | 3 |
| The number of the switches | 2 | Type of Auto Switch Mounting | Band mounting |
| Head Cover Port Position | 90° to axis | Pivot Bracket | Without bracket |
| Rod End Bracket | Without bracket | Type of Mount Support | Double foot type |
| Custom-made Specifications | None | Lock unit magnet | Built-in magnet |
| Customized specification (port positions) | - | Made-to-Order (hose nipple type) |
