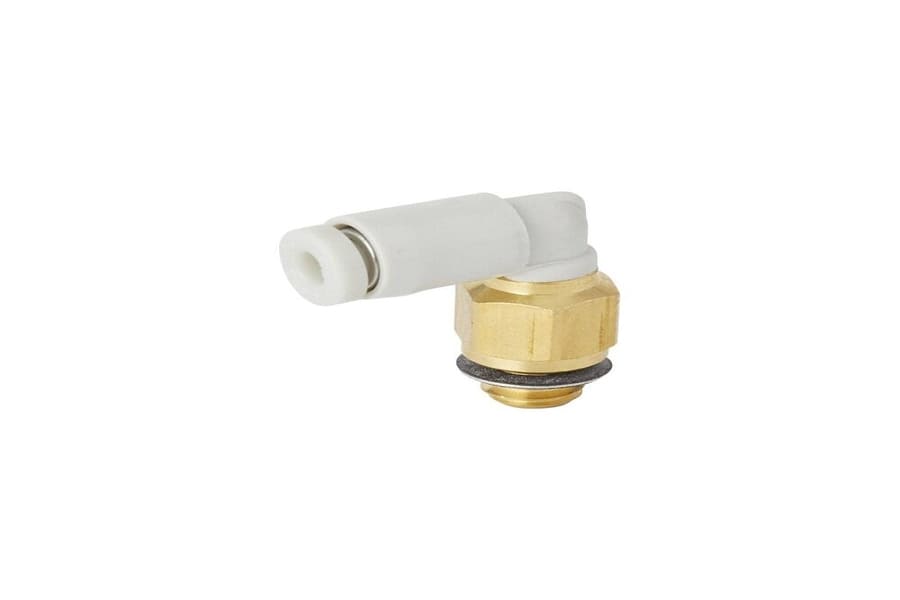

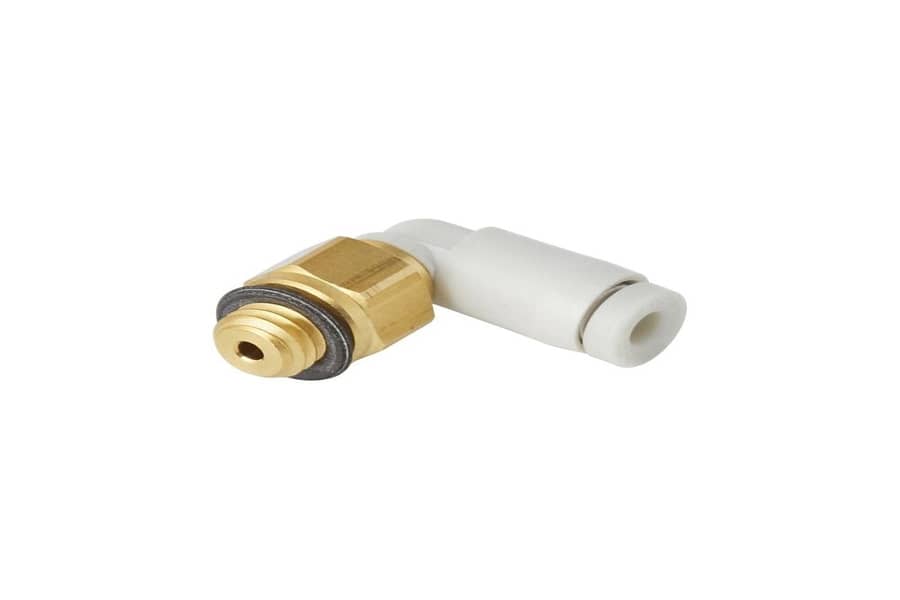

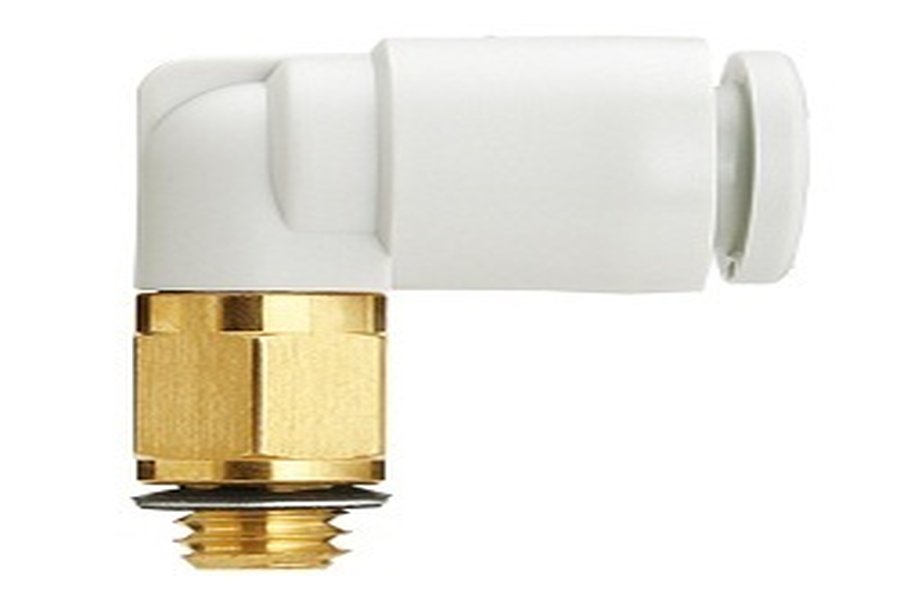

Fitting KQ2L04-M3G
- Product code: KQ2L04-M3G
- Trademark: SMC
- Origin: Singapore
- Status: New
Contact
SMC quick connect fitting.
[Features]
・ Improved tube insertion and removal.
・ Compact and lightweight.
・ Can be used in vacuum of -100 kPa and up.
・ Body shapes: Total of 51 models.
・ Thread part material / surface treatment (with/without): 2 types.
・ Surface treatment selections: Brass (without plating), brass + electroless nickel plating.
[Applications]
・ Used for pipework proceeding at a right angle from a female thread.
Configured Specifications
| Types | [One-Touch Couplings] Single-Action / Screw | Fitting Type | Screw Mount Direction |
|---|---|---|---|
| Applicable Fluid | Water / Air | Body Material | [SUS303, SUS304] SUS303+PBT |
| Application | Standard/Mini | Thread Material | [SUS303, SUS304] SUS303 |
| Packing, Material of O-Ring | [Standard (NBR Nitrile Rubber )] NBR | Screw Mounting, Direction | [Elbows] Elbow |
| Elbows | [Universal Elbows] Elbow Union | Operating Temperature(°C) | -5～60 |
| Applicable Tube O.D.1(φ) | 4 | Types of connection | M |
| Connection screw | 3×0.5 | Number of Connection Tubes(piece) | 1 |
| Color | White | Release button shape | Perfect circle |
| Release button color | Light Gray | Custom-made specifications | N/A |
| RoHS | - | - | - |
