Air Cylinder/ CDUJB16-10D
- Product code: CDUJB16-10D
- Trademark: SMC
- Origin: China
- Status: New
Contact

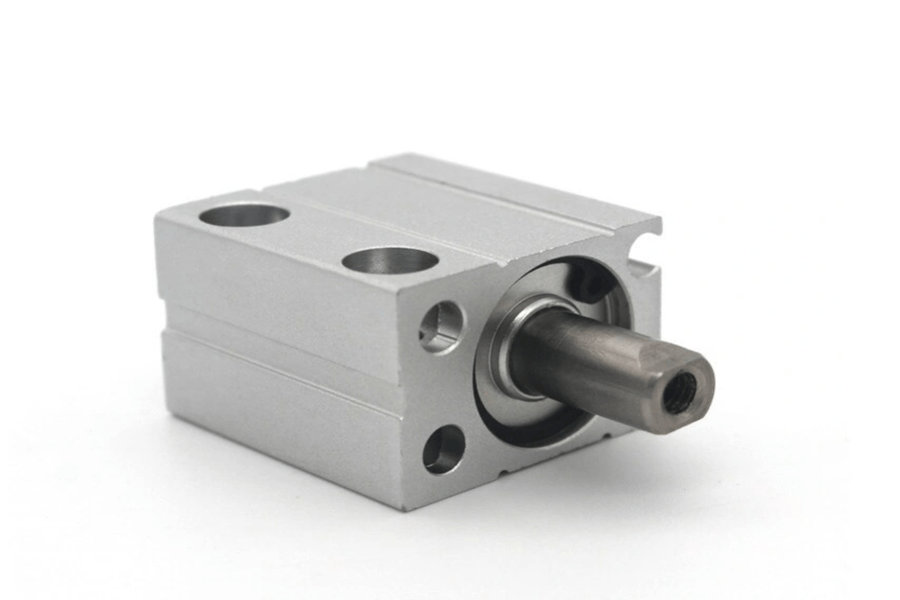

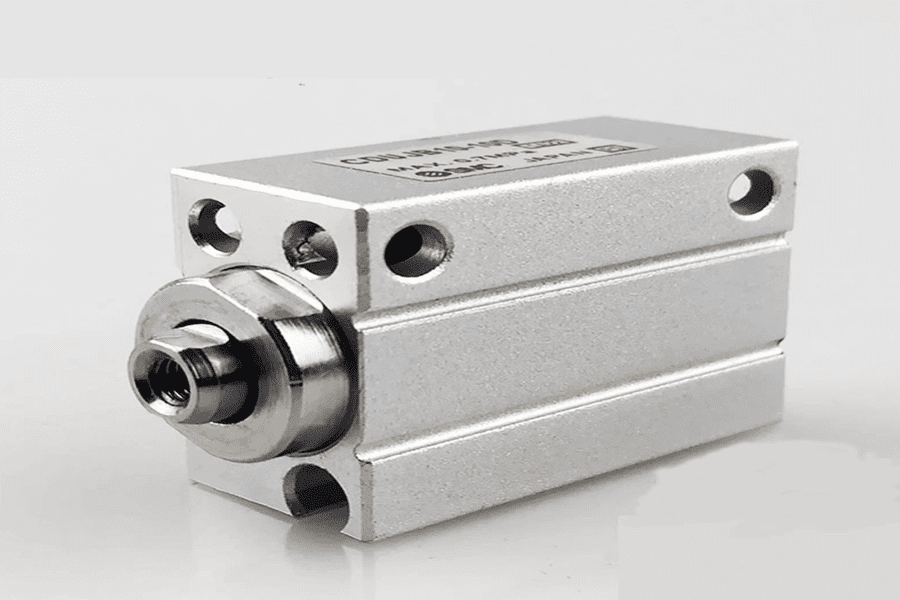

An air cylinder manufactured by SMC.
[Features]
· Miniature body.
· Concentrates wiring and piping on one side.
· With counterbore for mounting.
Configured Specifications
| Cylinder Operation Method | [Double Acting] Double Acting | Rod Operation Method | Single Rods |
|---|---|---|---|
| Main Body Shape | [Block Shape] Plate Cylinder | Cylinder (Tube) Inner Diameter(Ø) | 16 |
| Stroke(mm) | 10 | Additional Function | Standard |
| Environment, Applications | Standard | Operating Temperature(°C) | -10～70 |
| End Locking | No | Valves | No |
| Operating Pressure(MPa) | 0.07～0.7 | Cushion | Rubber cushion |
| Port thread type | - | Auto Switches | None |
| Type of Mount Support | - | Rod Tip Shape | Female rod end |
| Custom-made Specifications | None | Lock unit magnet | Built-in magnet |
| Mount Type | Lateral mounting | - | - |
