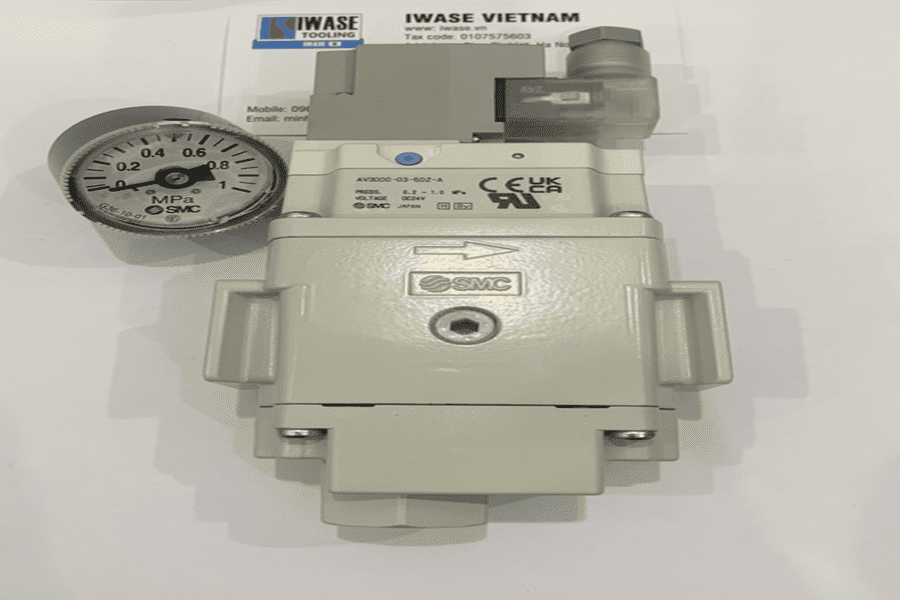

Solenoid Valve AV3000-03G-5DZ-A
- Product code: AV3000-03G-5DZ-A
- Trademark: SMC
- Origin: China
- Status: New
Contact
Low Power Consumption Soft Start-Up Valve AV2000/3000/4000/5000 Series
[Features]
・ A low-speed air supply that gradually raises the initial pressure of the pneumatic system, and a start valve that shuts off the air supply and enables rapid exhaust.
・ With air supply / exhaust function by manual operation
| Regulator Unit Combination | [Other FRL Combination Devices] Soft Start-Up Valve | Connection Dia. | Rc3/8 |
|---|---|---|---|
| Compressed Air Quality | General Dry Air | Max. Operating Pressure(MPa) | 1 |
| Flow Direction | [Standard Flow (Left to Right)] Flow Direction | Pressure Gauge | [With Standard Pressure Gauge] Round-shaped pressure gauge (with limit indicator) |
| Size of Body | 30 | Coil rated voltage | 24 V DC |
| Lead wire electrical entry | Type D DIN terminal (with connector) | Protection circuit | Indicator light, surge voltage suppressor |
| Manual operation | Non-locking push type (flush) | CE compliant | Non-compatible |
| RoHS | - | - | - |
